A quad kite truly forged by fire

The Djinn quad kite is designed and built to handle the high performance and quality demands of both John Barresi and Team KiteLife… Any kite design available from Kite Forge is exactly what John and his team fly, no secret modifications or tweaks, it’s ready to rock.

The Djinn was crafted from roughly three decades of quad kite experience and over 30 US Championships, as well as the knowledge gained from 7 full years of performance and touring with Team iQuad, backed up by months of rigorous flight and abuse testing.

Djinn for the win at 2023 EuroCup!

nils guhl

Standard Models and Color Combinations

All Djinn quad line kites include a fully configured sail and components including bridle, one frame and a kite sleeve. LPG lines (30′-120′ 50# or 90#) and handles (13″ curved) may also be purchased from our shop.

The various Djinn models break down like this, each with varying degrees of venting for different winds:

Not sure which Djinn?

Slide to your usual wind

10 mph

ModelVentingWind rangeFrame

UL ultralightNo venting in the wingsMore fragile than the others, so not ideal as a first quad.2–6 mph 3–10 km/hMystic 10

ST standardNo venting in the wings3–12 mph 5–19 km/hMystic 12

MV mid ventSingle vent in each wing5–18 mph 8–29 km/hMystic 14

VT full ventDouble vent in each wing7–25 mph 11–40 km/hMystic 16

XT xtra ventNetworked vents in each wing12–35 mph 19–56 km/hMystic 18

HV hardcore ventExpanded majority venting18–45 mph 29–72 km/hMystic 18

Djinn

Djinn UL

Design your own colors

Design your own Djinn in our colorizer, panel by panel, in real Icarex colors. Save it, then order straight from your design. (Colors subject to approval.)

Open the colorizer

Highlighted Features

Sync Bridle

The Djinn’s quad kite bridle is designed by John Barresi around a 100% original concept that functions more like a “dynamic” bridle, providing more connection and load sharing between all 4 points of tension, greatly lessens or eliminates center panel deflation (more balanced sail loading) using our “limiter” adjustment, and provides an enhanced glide ratio in belly-down positions, the Sync Bridle also maintains overall control into slightly higher wind ranges than you might expect. Additionally, the greatest wear points on the bridle are done with simpler, easier to replace components.

Bungee Knot Covers

We wanted to make this quad kite as smooth and recoverable as possible, so you won’t find any exposed bungee knots anywhere on the kite, we’ve instead placed them inside the leading edge wingtips (without interfering with frame changes) and added covers to those knots and washers on the bottom wingtips, so these will no longer create snags in flight or during ground recovery.

Smooth Leading Edge

Using a T-Piece configuration and thoughtful placement of bridle components, the Djinn quad kite has no exposed end caps or knots along the leading edge, once again eliminating the usual snag points where lines get caught or hung up during flight or ground recovery, this also completely solves the issue seen on older designs where the leading edge end caps were wearing through both the material and spars.

Leading Edge Mesh Tabs

As our answer to the common issue of leading edge mesh breakdown, we have added specific reinforcements at the fold points and in the center (most common problem areas), as well as smaller tabs throughout the length of the leading edge mesh to further enhance the kite’s durability.

Pro Class End Caps

The Djinn is using specifically designed end caps on all four wingtips that place the bridle attachments away from the very tip to significantly lessen overall wear and damage from ground contact (such as urban flying), the bridle has its own hole perpendicular to the bungee holes to eliminate directional conflict, and the caps are crafted from aluminum to not only keep them extremely light but also to make them incredibly durable against both abrasion and impact.

Performance Framing

Each kite comes with a Mystic frame set, chosen for their overall strength, recoil and weight, these spars are specifically made for and proven during the Djinn’s development – we currently offer 12, 14, 16 and 18 gram spars comparable to the spars used in most high performance standard, mid vent, vented, extra and extreme vent configurations.

Supported Sail Design

In addition to the overall quality of the Djinn build, it also features a latticed panel / seam arrangement to provide maximum “net-like” support in the sail which lessens stretch and particularly deformation or loss of the kite’s original outline or profile over time and also working toward the same end goal, all trailing edges are double stitched, all sail material is Icarex PC-31 (preferred by pro pilots worldwide).

Stretch Strips

Often referred to as “wear strips”, while they do certainly reduce friction and wear between the upright spars and the sail, the primary purpose of these components is actually to moderate and control the massive sail stretch and degradation that naturally occurs on many quad kites along the vertical spar due to repeated sail compression.

Folded Wingtips

Both ends of the leading edge material has been folded and sewn to reduce fraying and increase overall durability.

Indented Outer Trailing Edges

As you’ve seen by now, the outermost trailing edges of the Djinn quad kite are not cut in a straight line and have an inset angle applied to smooth out reverse flight which also helps with moderating the dreaded “bowtie” or single wing flip.

Targeted Venting

All vented models (MV, VT, XT and HV) feature venting that has been strategically placed to preserve the trailing edge “grip” and leading edge loading while still moderating overall pressure and speed with an average of 20% less venting than many traditional quad kite designs.

Custom Colors

You can also customize your own sail colors using our Djinn colorizer for a nominal fee, but please note all designs are subject to review and approval by Kite Forge staff for overall complexity and brand aesthetics – most designs will pass with no problem, our primary purpose for reviewing is to avoid overly complex “checkerboard” patterns or color combinations that are overly difficult to arrange, with a slight afterthought to ensuring that all kites produced also represent the brand to our taste.

Pilot Support

Djinn Owner’s Group on Facebook

Join the highly active Djinn Owner’s Group on Facebook for a plethora of tips, photos and videos from our customers and sponsored pilots all over the world, and share your own flying too!

Join the group

KiteLife Forum

For ongoing support, chat with us and an active community of quad kite fliers in our section of the KiteLife Forum. Tuning, handle choices, suggested lines or whatever, stop on by and post your question.

Visit the forum

Our kites

Imports

Kites by type

How you fly

Lines & gear

Parts

Outdoor

Products

Djinn

Optimist (by Richard Debray)

Switch (by Alain Micquiaux)

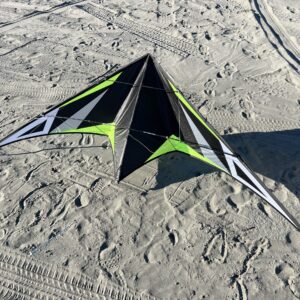

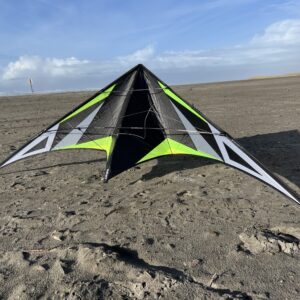

Object
